Rectifier Transformer

Rectifier Transformer

Description:

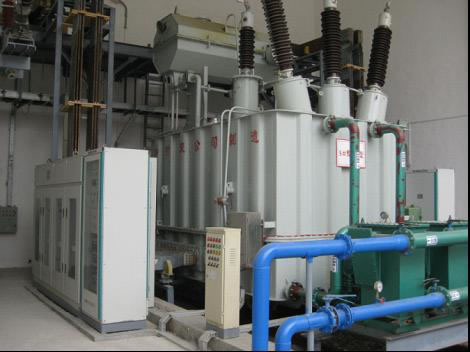

Rectifier transformer is designed as a single entity for converting alternating current into direct current. It is a piece of power system equipment rather than an electronics component. Rectiformers are used for supplying power to different fields of ESP (electrostatic precipitator). It is commonly found in electrowinning operations. Rectifier transformers are combined with a diode or thyristor rectifier. The applications range from large aluminium electrolysis to various medium-size operations, such as electrowinning industry, chlor-alkali industry, aluminum industry, DC arc furnace industry, etc. A rectiformer may have a separate voltage regulation unit. Due to a large variety of applications, they can have various designs up to a combination of voltage regulating. Rectifier transformers are used for industrial processes which require a significant direct current (DC) supply. Typical processes would include DC traction, electrolysis, smelting operations, large variable speed drive trains, etc. CORROCO, with more than ten years' production experience, can provide top-quality rectiformers and full scope of services for clients.

With different connection, rectifier transformers can be classfied as below:
1. Three-phase bridge commutation circuit
2. Cophase counter parallel three-phase bridge commutation circuit
3. Double backward star & balance reactor commutation circuit
4. Cophase counter parallel double backward star & balance reactor commutation circuit

Parameters of Rectiformer:

Rectifier Application Typical Rectifier Rating
Current (Amps) Voltage (DC  Volts)
Chemical Electrolysis 5,000 - 150,000 40 - 1,000
Aluminum Potline 10,000 - 300,000 < 1,300
DC Arc Furnace 50,000 - 130,000 600 - 1,150
Graphitizing Furnaces 20,000 - 120,000 50 - 250
Zinc/Lead, etc Electrolysis 5,000 - 100,000 100 - 1,000
Copper Refining 10,000 - 50,000 40 - 350
Traction Substations 1,000 - 5,000 500 - 1,500

Corroco International Industrial Co., Ltd is a professional manufacturer and supplier of rectifier transformers in China. In addition to rectiformers, we are also engaged in producing induction furnace, casting machine, rotary kiln, and other hydrometallurgical equipments. Based on 12 years' production experience, our products have been exported to the United States, Canada, Britain, Germany, Iran, Pakistan, India, Kuwait, Dubai, Saudi Arabia, the Philippines, Malaysia, Singapore, Congo, Turkey, etc.
